Trinocular 5X-10X-15X-30X 1.3MP Digital Stereo Single Boom Stand Microscope with 144 LED Ring Light

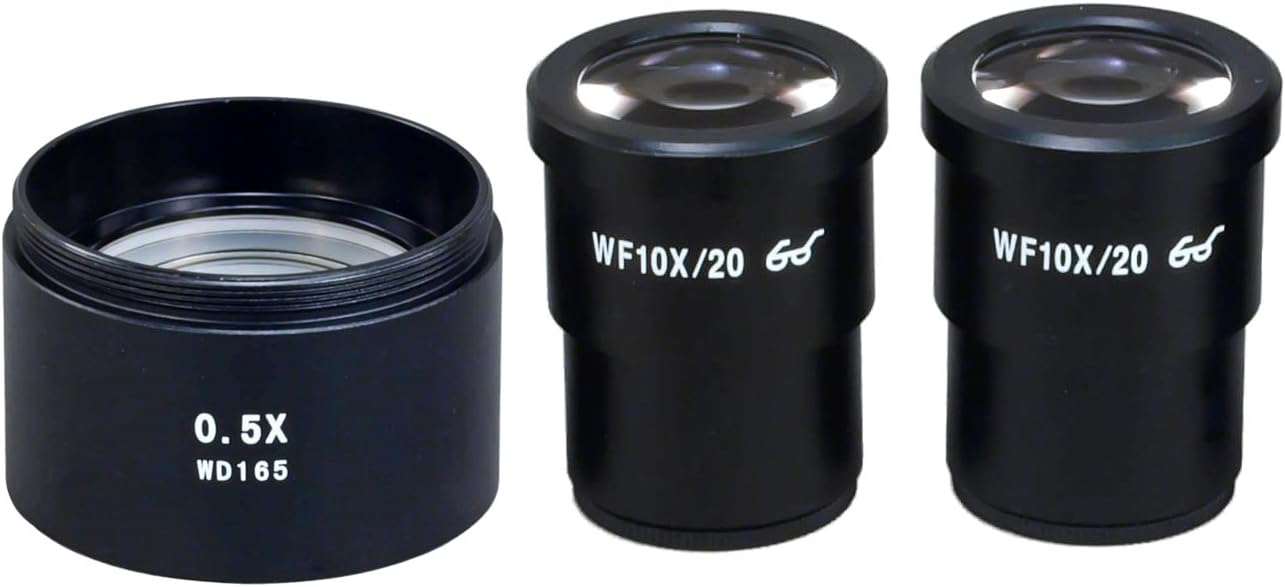

This is a single bar boom stand super widefield trinocular stereo microscope with 5X, 10X, 15X, and 30X magnification settings combined with a 1.3MP USB digital microscope camera. It includes a pair of super widefield high-eyepoint WF10X/20 eyepieces coming with 45° inclined 30mm eyetubes with left eyetube diopter adjustment, a 0.5X auxiliary objective, a 144-LED ring light. The super widefield optics and high-eyepoint design ensure an easy and comfortable observation. Its adjustable trinocular port allows you to add photo or video capability. The included 144-LED ring light provides bright, shadowless illumination across the field of view and has a light intensity control dial located on the ring light. The single-arm boom stand allows to turn the microscope head around two different axes, letting you point microscope head in various directions. The microscope provides high resolution clear images, super widefield of view and large working distance. The digital camera captures still microscope images, streams live video preview to your computer, and is compatible with Windows, Mac OS X, and Linux (see version information below). The 0.37X reduction lens included gives your computer screen a wider field of view. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously.

• Four magnification levels: 5X, 10X, 15X, 30X; Eyepieces: high eye-point, wide field WF10X/20; Objectives: rotational 1X and 3X; 45 degrees inclined 360 degrees rotatable binocular head; Sharp stereo erect images over a super wide field view; Left ocular-tube diopter adjustment +/-5dp; Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm)
• Four magnification levels: 5X, 10X, 15X, 30X; Eyepieces: high eye-point, wide field WF10X/20; Objectives: rotational 1X and 3X; 45 degrees inclined 360 degrees rotatable binocular head; Sharp stereo erect images over a super wide field view; Left ocular-tube diopter adjustment +/-5dp; Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm)
• Four magnification levels: 5X, 10X, 15X, 30X; Eyepieces: high eye-point, wide field WF10X/20; Objectives: rotational 1X and 3X; 45 degrees inclined 360 degrees rotatable binocular head; Sharp stereo erect images over a super wide field view; Left ocular-tube diopter adjustment +/-5dp; Interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm)
• Auxiliary lens or ring light adapter mount: 48mm female thread; Auxiliary lens: 0.5X; Working distance: 4inch (100mm), 1-1/4inch (30mm) with 2X auxiliary lens mounted; Field of view: up to 3/4inch (20mm); Illumination: 144-LED ring light; Voltage: 100-240V worldwide voltage
• Focus adjustment: metal rack and pinion, range 2inch (50mm), tool-free tension adjustment; Boom stand length: 22-7/8inch (58cm); Height of boom stand: 16-3/4inch (42.5 cm); Boom horizontal travel stroke: 9-1/4inch (23.4cm); Boom vertical travel stroke: 7-1/2inch (19cm); Base dimensions: 9inch x 9inch (23 cm x 23 cm)
• Digital camera: - true color 1280x1024 pixels (1.3MP) - 0.37X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 15fps at 1280x1024, 26fps at 640x512, 50fps at 320x256 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
• 5-year warranty against manufacturing defects
